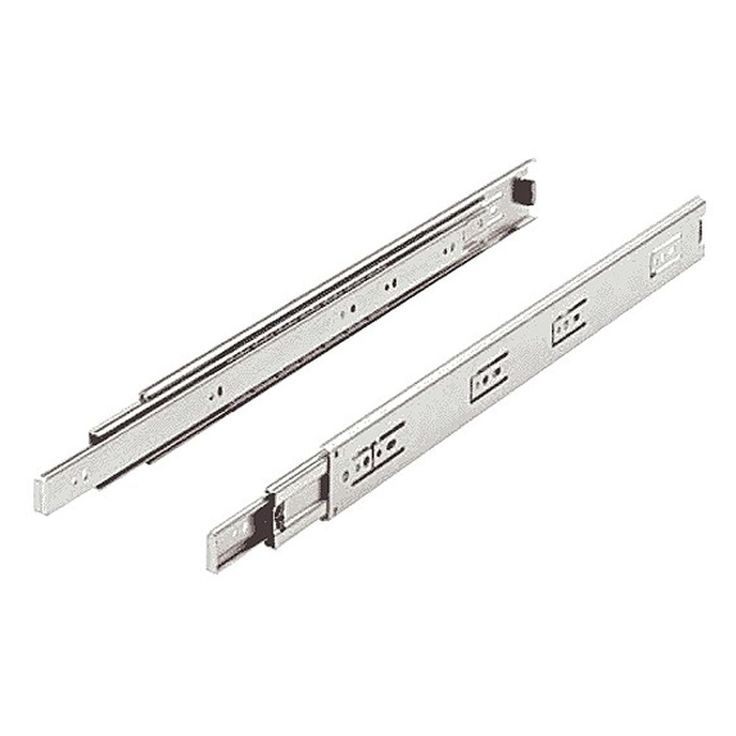

10 in. Side Mount Full Extension Ball Bearing Drawer Slides
2.073 / 2 / 12
$21.20
Skip to product information
The 1170 Drawer Slide Series replaces both the Accuride 3800 and KV 8400 series. Available in a zinc finish, these side-mount, non-handed drawer slides feature a 32 mm hole pattern which allows simple access mounting on drawer and cabinet members, breathing tabs that self adjust to the side clearance, a hold/close function, lever disconnect for easy drawer removal and a 100 lbs. weight capacity. Available in 10 in. to 28 in. L
Features
10 in. Side Mount Full Extension Ball Bearing Drawer Slides
$21.20
- Side-mount, non-handed, full-extension drawer slides
- 32 mm hold pattern
- 100 lbs. weight capacity
- 1/2 in. side clearance
- Steel ball bearings
- Easy lever disconnect
- Screws and optional back sockets (30.1170) sold separately
Features
| Item Weight | 1.728 |
| Slide System | Ball Bearing |
| Features | No Additional Features |
| Material | Steel |
| Weight load per set (lb.) | 100 |
| Mount Type | Side Mount |
| Package Quantity | 2 |
| Returnable | 180-Day |
| Builders Hardware Product Type | Drawer Slides |
| Finish Family | Silver |
| Drawer Slide Type | Ball Bearing |
| Maximum Expandable Length (in.) | 20 |
| Slide Length (In.) | 10 |
| Product Height (in.) | 1.81 |
| Product Width (in.) | 2 |
| Manufacturer Warranty | N/A |
